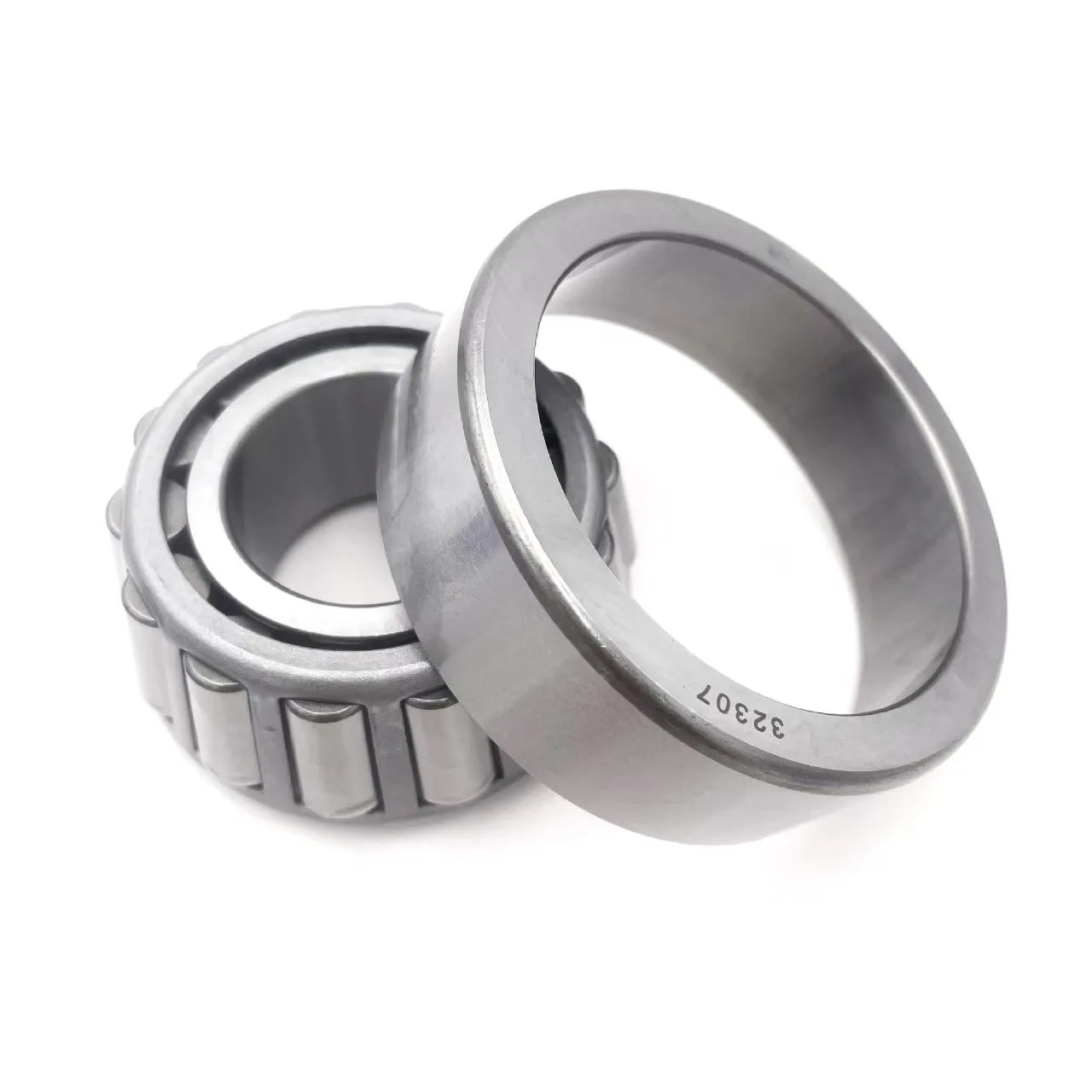

Taper roller bearing:32307

Basic Characteristics

- Type and Structure: It belongs to tapered roller bearings. The raceways of the inner ring and the outer ring are conical, and the tapered rollers are placed between them. The projection lines of all conical surfaces converge at the same point on the axis of the bearing. This structure enables it to bear relatively large combined radial and axial loads.
- Dimension Parameters: Its bore diameter is 35.000mm, the outer diameter is 80.000mm, and the thickness is 32.750mm.
- Load-bearing Capacity: Through optimized design and strict manufacturing processes, it can bear relatively large radial and axial loads and is suitable for heavy-duty working conditions, such as mechanical equipment in the metallurgical and mining fields.
- Rotational Speed Performance: When lubricated with grease, the rotational speed is generally 5000r/min, and when lubricated with oil, the rotational speed is generally 6300r/min, which can meet the usage requirements under medium rotational speed conditions.
- Accuracy and Noise: It has a relatively high manufacturing accuracy, and the vibration and noise during operation are relatively low, which can ensure the stability and reliability of mechanical equipment and is suitable for working environments with strict noise requirements.
- Installation and Maintenance: It is a separable bearing. The tapered inner ring assembly composed of the inner ring with rollers and the cage assembly can be separated from the outer ring for installation, which is convenient for installation, disassembly, maintenance and replacement.
- Service Life: It is made of high-quality bearing steel, such as GCr15 and other materials, and has undergone advanced heat treatment processes and manufacturing processes, giving it good hardness, toughness and wear resistance. Under normal use and maintenance conditions, it has a relatively long service life.
- High-temperature Resistance: Some 32307 bearings adopt special high-temperature-resistant materials and heat treatment processes, and can still maintain good dimensional stability and mechanical properties in high-temperature environments, so they can be applied to high-temperature working conditions in metallurgy, chemical industry and so on.

Taper roller bearing:32307

Product Application

The 32307 bearings can be used in: cutting equipment, square box, patch machine, wet cooling tower, water welder, quenching machine, milling machine, double girder crane, gear pump, tile machine, parcel machine, feed processing equipment, tube reactor, water transfer equipment, electrical appliances, rubber laminating machine, plastic weaving machine, blower, and other applications.

•

   cutting equipment

•

            electrical appliance
