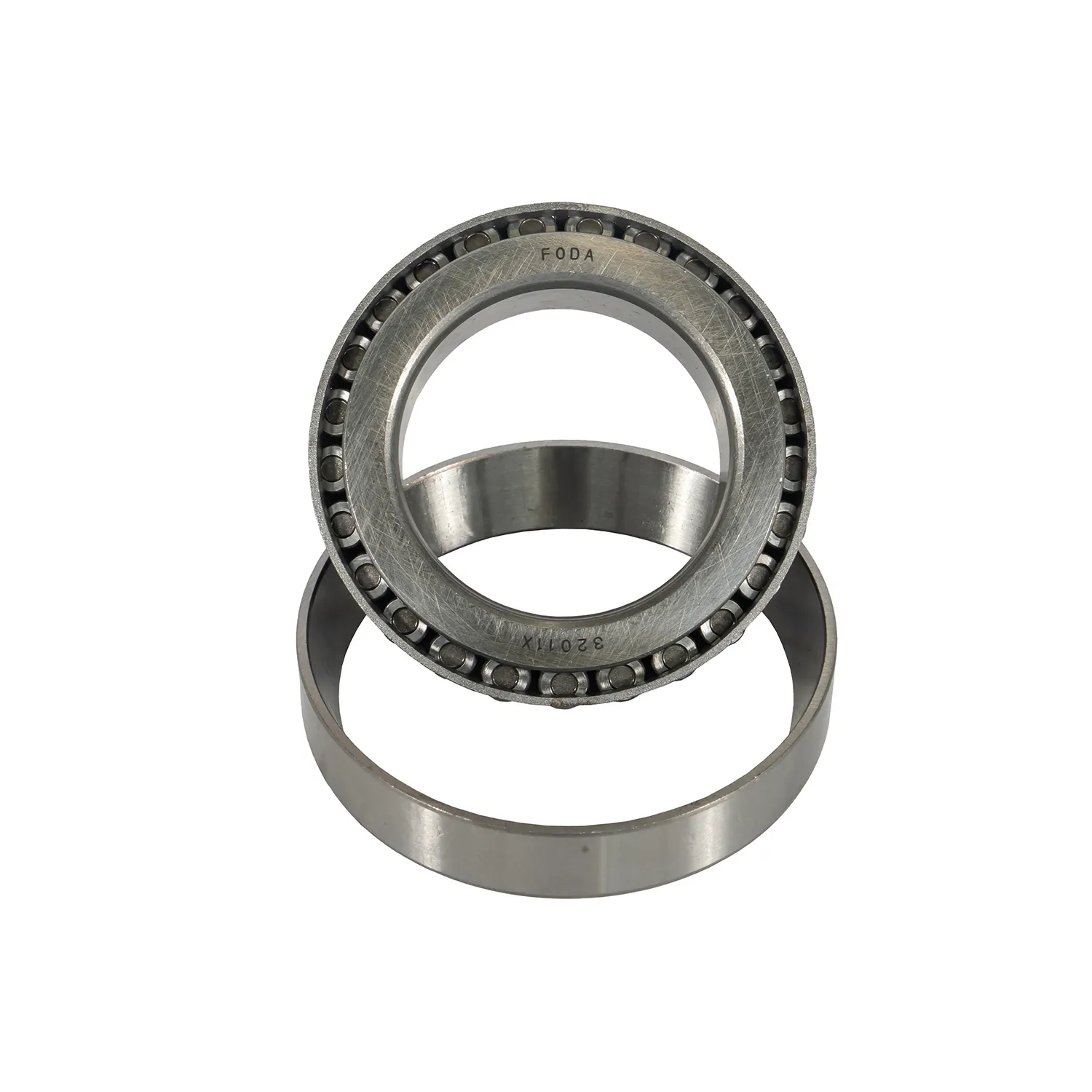

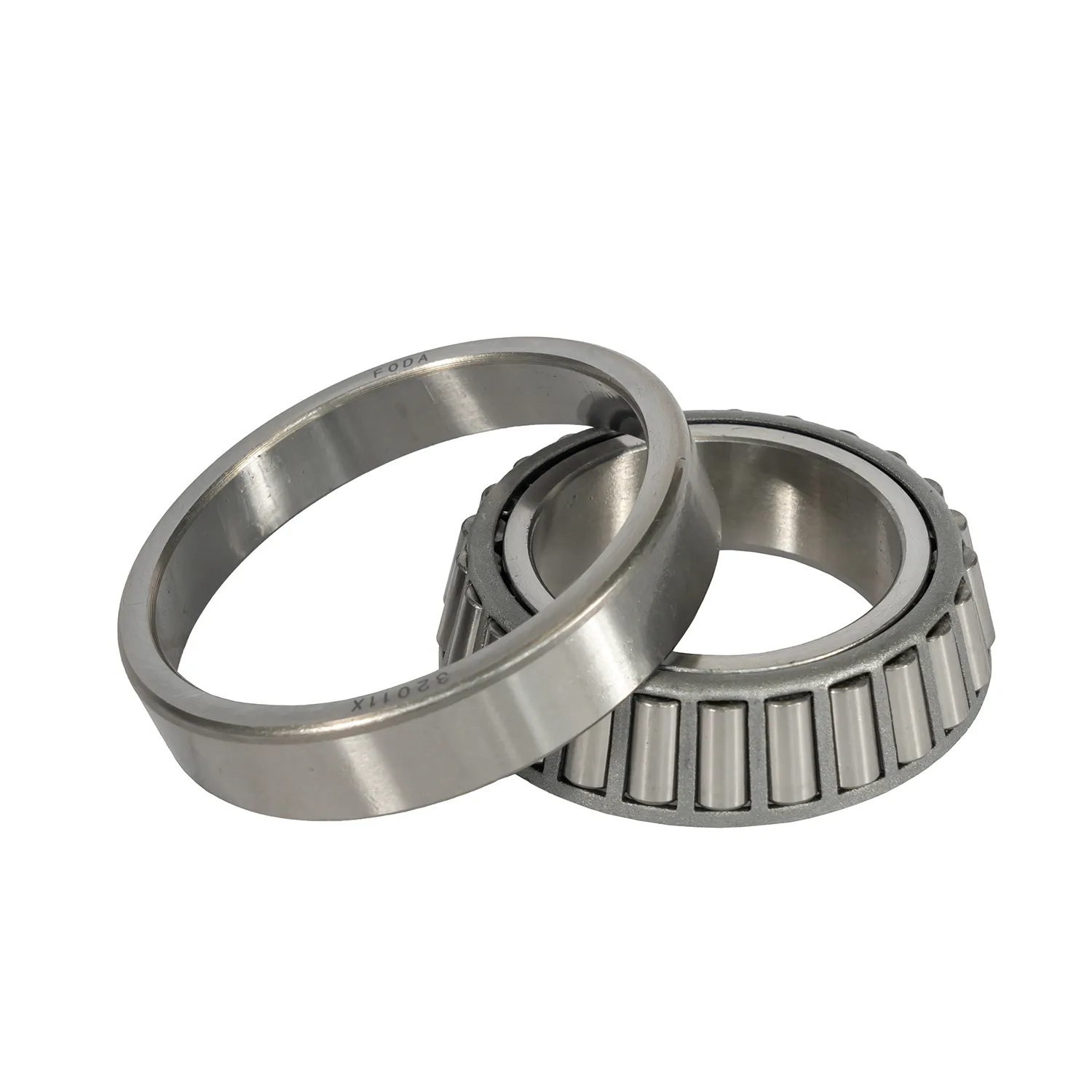

Taper roller bearing-32011X

Basic Parameters

The 32011X is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 32011X  is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

•

  Taper roller bearing-32011X

•



Working Principle

1，the working principle of the bearing is to rolling friction instead of sliding friction;
2, due to a variety of machinery has different working conditions, the rolling bearing in the load capacity, structure and use of performance and so on have put forward a variety of different requirements, therefore, rolling bearings need to have a variety of structures;
3, bearings are usually with the help of the cage uniformly arranged in the two rings between the rolling motion, its shape, size and number of direct impact on the bearing load capacity and use of performance.Its shape, size and number directly affect the bearing load capacity and use performance, keep frame in addition to the rolling body evenly separated, but also can guide the rolling body rotation and improve the bearing internal lubrication performance and so on.

Product Application

The bearings can be used in: aluminium welding machines, bag making machines, film blowing machines, roller furnaces, broaching machines, drilling equipment, dry powder mixing equipment, concrete pump trucks, screw pumps, plasma cutters, testing and analytical equipment, cement machines, baling machines, sewing equipment, magnetic separators, agricultural experimental equipment, tower reactors, winding machines, stranding machines, and other applications.
